Showing 2 results

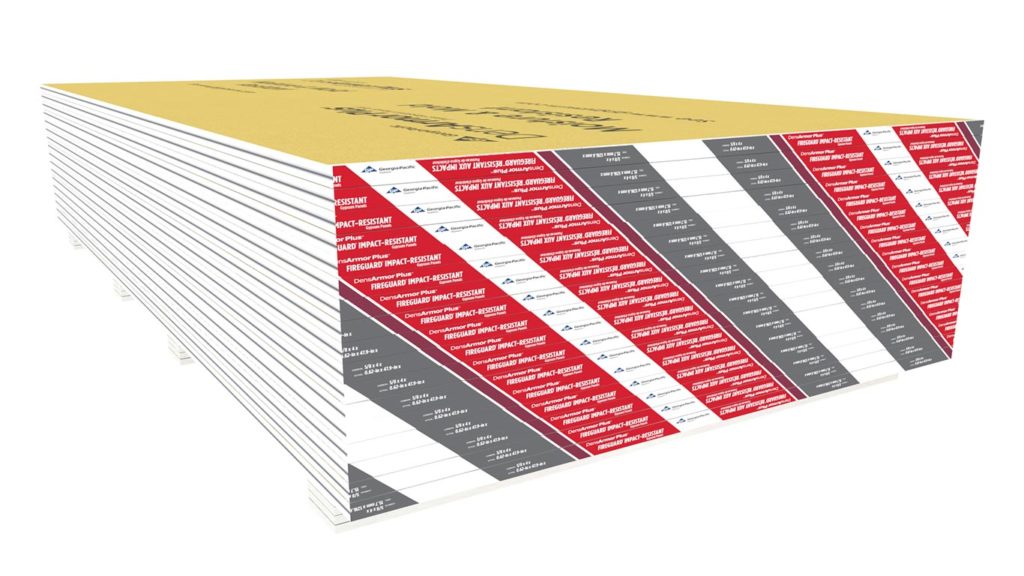

DensArmor Plus Fireguard Impact-Resistant Interior Panels
Thickness

nominal: 5/8″ (15.9 mm) ± 1/64″ (0.4 mm)

Width

nominal: 4′ (1219 mm) ± 3/32″ (2.4 mm)

Length

standard: 8′ (2438 mm), 10′ (3048 mm), 12′ (3658 mm) ± 1/4″ (6.4 mm)

Weight

lbs/sq. ft. nominal (kg/m²): 3.0 (14.6)1

R Value

°F•ft2•hr/BTU (m2•K/W): 0.67 (0.118)2

Humidified Deflection

≤1/8″ (3 mm)3

1Represents approximate weight for design and shipping purposes. Actual weight may vary depending on manufacturing location and other factors. 2Tested in accordance with ASTM C518 3Tested in accordance with ASTM C473

Impact Resistance
Moisture Resistance
Special Applications

DensDeck Prime roofing side
Thickness

Nominal: 1/4″ (6.4 mm) ± 1/16″ (1.6 mm)

Width

Standard: 4′ (1219 mm) ± 1/8″ (3 mm)

Length

Standard: 4′ (1219 mm) AND 8′ (2438 mm) ± 1/4″ (6.4 mm)

Weight

lbs/sq. ft. nominal (kg/m²): 1.2 (5.9)1

Flexural Strength

Parallel, lbf. Min. (N) ≥40 (178)2

R Value

°F•ft2•hr/BTU (m2•K/W): .283

1Represents approximate weight for design and shipping purposes. Actual weight may vary based on manufacturing location and other factors. 2Tested in accordance with ASTM C473, method B. 3Tested in accordance with ASTM C518 (heat flow meter).

Fire Resistance
HAIL RESISTANCE
WIND RESISTANCE
SPECIAL APPLICATIONS
