UltraStock® Select

UltraStock® Select

  • Refined fiber composition and tight, uniform density for routing, cutting and shaping
  • Manufactured with 100% NAF resin
  • Surface is suitable for paints, stains, veneers or laminates
Smooth solution for the most demanding job.

UltraStock® products are manufactured with 100% NAF resins to provide optimized panel solutions for a wide selection of performance characteristics. You’ll love working with the smooth, consistent face – and you’ll see right away why it’s designed for demanding contouring and machining applications.  UltraStock® Select is ideal for routing, cutting and shaping – along with RTF Cabinet Door and other critical machining applications.

Highly refined fiber composition and tight, uniform density for routing, cutting and shaping.

Manufactured with 100% NAF resin.

Smooth surface is polished with a final 150 grit finish suitable for paints, stains, veneers or laminates.

Features MR10 thickness-swell, moisture-resistance designation.

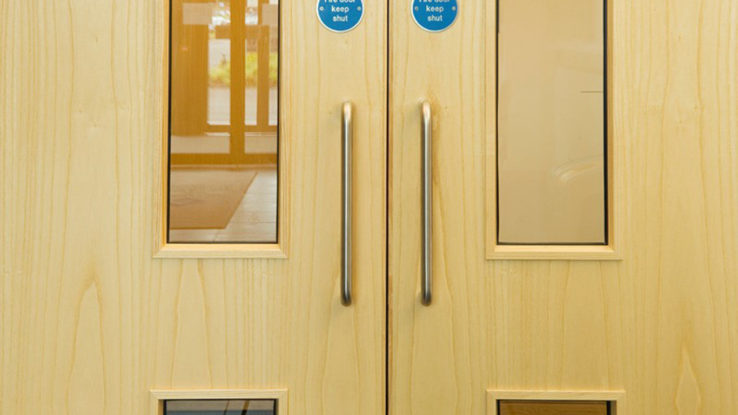

Ready-to-finish cabinet door and other precision machining applications

All UltraStock panels are recognized by the California Air Resources Board (CARB) as no added formaldehyde (NAF) products by Executive Order N-15-021a.

SPECS

Dimensions
Thicknesses

1/4” –  1-1/8”

Widths

To 5’

Lengths

To 16’

Physical Properties
Min Panel Averages (1)

1/4” to <1/2”            1/2” to  1-1/8”

MOR-Modulus of Rupture (psi)

4500                                 4050

MOE-Modulus of Elasticity (kpsi)

450                                   405

IB-Internal Bond (psi)

120                                   120

Face Screw Holding Capacity (lbs)

270                                    270

Edge Screw Holding Capacity (lbs) (2)

NA                                     250

Formaldehyde Emissions - CARB II Compliant

✔                                     ✔

24-Hour Thickness Swell

<0.0325”                           <5.5%

  1. One-panel minimum average per ANSI 208.2 2. Not applicable for thinner than 5/8”
Tolerances
Length & Width

± 1/16” per panel

Squareness

± 1/64” per ft. of length

Straightness

± 1/64” per ft. of length

Thickness (within panel)

± 0.005”

Thickness (panel to panel)

± 0.005”

Environmental Credits
Recycled Content (MR credit 4)

Awards 1 or 2 points for using products with recycled content that constitute at least 10% or 20%, based on cost, of the total value of project materials.

Regional Materials (MR credit 5)

Awards 1 or 2 points for using materials on a project that are extracted and manufactured within 500 miles that constitute at least 10% or 20%, based on cost, of the total value of project materials.

Environmental Quality (EQ credit 4.4)

Requires composite wood products used on project to demonstrate documented compliance with California Air Resources Board ATCM formaldehyde requirements for ultra-low-emitting formaldehyde (ULEE) resins or no-added-formaldehyde (NAF) resins.

Low-VOC Emitting Materials (G2.9)

Specifies architects to select low-VOC emitting materials

Pre-consumer Recycled Content (604.1(2))

Use recycled content products in major areas such as walls, floor, insulation and roofing.

CERTIFICATIONS
ECC CERTIFICATION

UltraStock products produced in the Georgia-Pacific facility in Mt. Jewett, Pennsylvania, have been awarded the Composite Panel Association (CPA) Eco-Certified Composite (ECC) grademark which verifies compliance with the CPA 4-11 ECC Sustainability Standard, the California Air Resources Board (CARB) Airborne Toxic Control Measure (ATCM) 93120 and the EPA TSCA Title VI rule.

FSC® CERTIFICATION

UltraStock that is certified to conform to the requirements of Forest Stewardship Council® standards for FSC Mix Chain of Custody and Controlled Wood manufacturing is available by special order.

MR10 Designation

Based on ANSI A208.2-2016 section 3.6, to receive the MR10 designation product samples must demonstrate the 24-hour thickness swell test value of 5.5% or less.

EPA TSCA, TITLE VI

All UltraStock is CARB and EPA TSCA Title VI compliant. This Product contains no Added Formaldehyde.

ECC Eco-Certified Sustainable Use of Wood FiberFSC Certified Building Products
