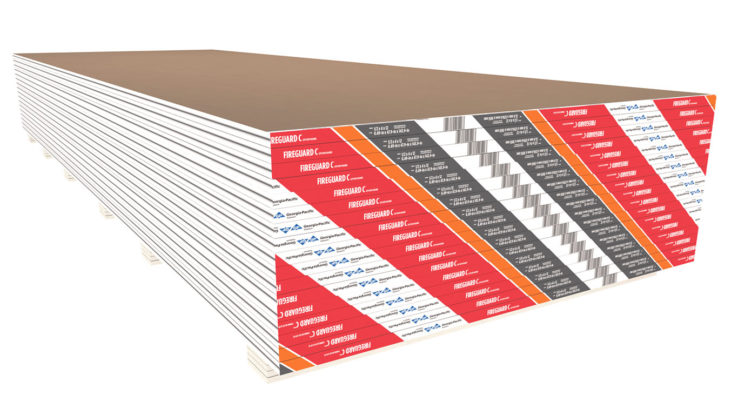

ToughRock® Fireguard C ® Gypsum Board

  • UL Classified Type TG-C
  • Designed for a variety of UL assemblies with a designated fire-resistant rating1
  • Reinforced with glass fibers to increase strength and fire resistance

Product Details

ToughRock® Fireguard C® Gypsum Board – a definitive solution for advanced interior drywall applications. Crafted with exacting standards, it’s noncombustible, tested and described in accordance with ASTM E136, making it ideal for construction requiring a high fire-resistant rating.1 Its core is a dimensionally stable compound of gypsum, strengthened with glass fibers forming a robust, fire-resistant barrier. This product adheres to the ASTM C1396 Section 5 standards and comes in two thickness variants. Choose the 1/2″ (12.7 mm) or 5/8″ (15.9 mm) gypsum board, both UL Type TG-C and ULC classified Type C.

In high-use areas like kitchens and bathrooms or anywhere subject to powerful side lighting, make the most of your ToughRock® Fireguard C® Gypsum Board by employing a skillful hand to spread a fine layer of joint compound across the entire surface. This pivotal step will soften any seam lines and guard against unwanted visual emphasis. To achieve top-notch results, it’s critical to follow the guidance detailed in the Gypsum Association guidelines (GA-214 and GA-216). These manuals are your key to a flawless finish and proficient joint treatment for your walls and ceilings.

FEATURES AND BENEFITS

  • Exceptional Surface Compatibility: Accepts a wide variety of paints, textures, and wall coverings, making it ideal for any space.
  • Enhanced Glossy Paint Performance: For kitchens, bathrooms, or areas with strong side light, skim coat joint compound over the surface to reduce joint photographing or highlighting.
  • Reliable Joint Treatment: Follow Gypsum Association guidelines (GA-214 and GA-216) to ensure perfect joint treatment and finishing.
  • Enhances Fire Resistance: UL-Classified Type TG-C with a noncombustible gypsum core reinforced by glass fibers. Tested to meet ASTM E136 standards, ensuring superior fire protection for walls and ceilings.
  • Durability and Stability: The dimensionally stable core withstands tough conditions without compromising on performance.

Product Specifications

PHYSICAL PROPERTIES

1/2″ (12.7 mm)
5/8″ (15.9 mm)

PERFORMANCE ATTRIBUTES

R Value°F•ft2•hr/BTU (m2•K/W): 0.45 (0.08)
Humidified Deflection10/8″ (32 mm)
Flame Spread & Smoke Development15 & 0 (product dependent)
Fire RatingType X
Mold Resistance (only include for Dens® and MMR products)No (10/10)
Water Absorption for Dens® and MMR products5%

PHYSICAL PROPERTIES

Lengthstandard: 8′ (2440 mm) to 14′ (4270 mm), ± 1/4″ (6.4 mm)
Widthnominal: 4′ (1220 mm) ± 3/32″ (2.4 mm)
Thicknessnominal inches: 1/2″ (12.7 mm) ± 1/64″ (0.4 mm)
Weightlbs./sq. ft., nominal (kg/m2): 2.0 (9.0)2
EdgeTapered, square or tapered with rounded edges

PERFORMANCE ATTRIBUTES

R Value°F•ft2•hr/BTU (m2•K/W): 0.45 (0.08)
Humidified Deflection10/8″ (32 mm)
Flame Spread & Smoke Development15 & 0 (product dependent)
Fire RatingType X
Mold Resistance (only include for Dens® and MMR products)No (10/10)
Water Absorption for Dens® and MMR products5%

PHYSICAL PROPERTIES

Lengthstandard: 8′ (2440 mm) to 14′ (4270 mm), ± 1/4″ (6.4 mm)
Widthnominal: 4′ (1220 mm) ± 3/32″ (2.4 mm)
Thicknessnominal inches: 5/8″ (15.9 mm), ±1/64″ (0.4 mm)
Weightlbs./sq. ft., nominal (kg/m2): 2.3 (11.2)2
EdgeTapered, square or tapered with rounded edges

CERTIFICATIONS

Green guard logo - green square with white textUL classified logo - black circle with black and white textULC certified logo - black circle with letters

Certifications may vary by production location, please contact local representative for more information.

1 Consult UL Fire Resistance Directory for assembly information.

2 Represents approximate weight for design and shipping purposes. Actual weight may vary depending on manufacturing location and other factors.

*FIRE SAFETY CAUTION – Passing a fire test in a controlled laboratory setting and/or certifying or labeling a product as having a one-hour, two-hour, or any other fire resistance or protection rating and, therefore, as acceptable for use in certain fire rated assemblies/systems, does not mean that either a particular assembly/system incorporating the product, or any given piece of the product itself, will necessarily provide one-hour fire resistance, two-hour fire resistance, or any other specified fire resistance or protection in an actual fire. In the event of an actual fire, you should immediately take any and all actions necessary for your safety and the safety of others without regard for any fire rating of any product or assembly/system. For additional information concerning fire ratings and fire safety, visit our Product Fire, Safety and Use Information page.

Consumer Product Safety Act (CPSA) – For CPSA General Certificate of Conformity, please click here.

Resources

HPD/EPD
Installation
Safety Data Sheets
Submittal
Tech Guides
Warranties
5/8" ToughRock® Fireguard C® Panel - EPD
0 Selected Resources
0 Selected Resources
ToughRock ® Gypsum Board Wallworks Guide
0 Selected Resources
0 Selected Resources
ToughRock Paper Faced Gypsym Safety Data Sheet
0 Selected Resources
Paper Faced Gypsum Panels Safety Data Sheet - Spanish
0 Selected Resources
Paper Faced Gypsum Panels Safety Data Sheet - French
0 Selected Resources
Gypsum Paper Faced Panels English Canada
0 Selected Resources
0 Selected Resources
ToughRock® Fireguard X® and ToughRock® Fireguard C® Gypsum Board Submittal
0 Selected Resources
0 Selected Resources
ToughRock® - Technical Guide
0 Selected Resources
ToughRock® – Technical Guide (Español)
0 Selected Resources
0 Selected Resources
ToughRock® Joint Systems Limited Warranty - Canada (English)
0 Selected Resources
ToughRock® Joint Systems Limited Warranty - USA (English)
0 Selected Resources
ToughRock® Limited Warranty - Canada (English)
0 Selected Resources
ToughRock®Limited Warranty - USA (Español)
0 Selected Resources
ToughRock®Limited Warranty - USA (English)
0 Selected Resources
ToughRock® Limited Warranty - Canada (Français)
0 Selected Resources
0 Selected Resources

FAQs

Should the ToughRock® Fireguard C gypsum board be installed vertically or horizontally?

While gypsum boards are stronger in one direction, for walls, they may be installed either vertically or horizontally on both wood and steel studs. If the boards are to be used in a fire rated assembly, then use the board orientation that is stated in your specific rated assembly.
