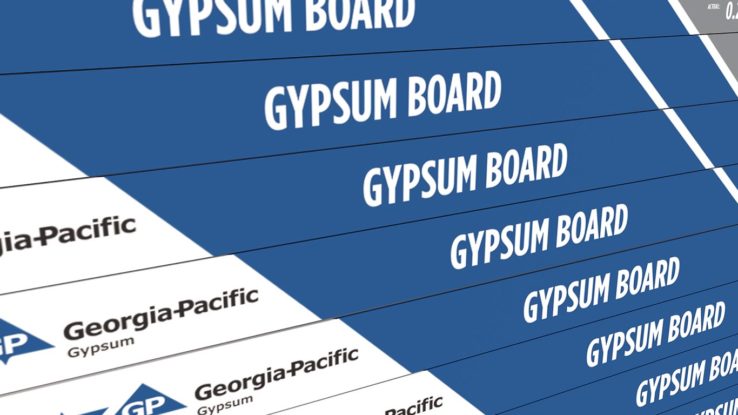

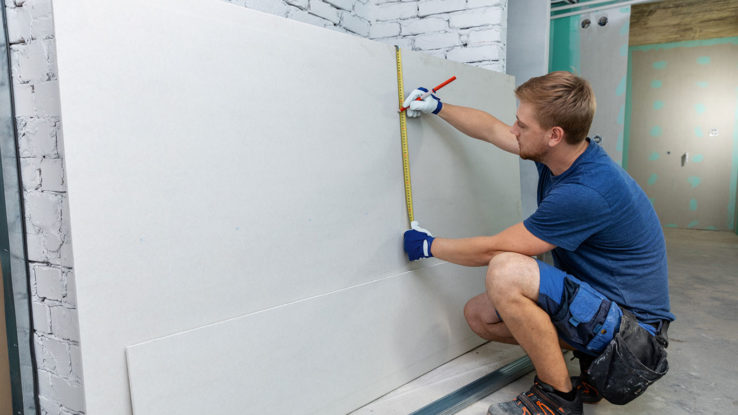

ToughRock® 1/4" and 3/8" Gypsum Board product rendering - panels are stacked togeherToughRock® 1/4" and 3/8" Gypsum Board product rendering - close up of tape which is vertical lines in teh color gray, blue and whiteToughRock® 1/4" and 3/8" Gypsum Board product installation
ToughRock® 1/4" and 3/8" Gypsum Board product rendering - panels are stacked togeherToughRock® 1/4" and 3/8" Gypsum Board product rendering - close up of tape which is vertical lines in teh color gray, blue and whiteToughRock® 1/4" and 3/8" Gypsum Board product installation

ToughRock® 1/4" and 3/8" Gypsum Board

  • Standard regular drywall panel ideal for renovation projects, including wall and ceiling repair, and curved surfaced applications where a 1-hour fire rating is not required.
  • Standard gypsum core for general-purpose use with naturally occurring fire resistance from gypsum core (21% water).

Product Detail

ToughRock® 1/4″ and 3/8″ Gypsum Board is a wall or ceiling covering material for use in new building construction or renovation work. It is designed for direct attachment (screws, nails or adhesive) to wood and metal framing or existing surfaces. This gypsum board excels in creating curved surfaces and offers easy scoring, snapping, and installation, making it a top choice for pros. It delivers a safe and reliable solution for low-moisture interior environments. Its smooth surface accommodates a variety of decorative treatments, ensuring a professional finish.

It may also be used as a covering material for flat or curved structures. The facing material may be formed to a curve with a short radius. Manufactured to meet ASTM C1396 Section 5, ToughRock 1/4″ and 3/8″ Gypsum Board have a flame spread rating of 15 and smoke developed 0, when tested in accordance with ASTM E84. The core is noncombustible when tested in accordance with ASTM E136.

FEATURES AND BENEFITS

  • Noncombustible Core: Meets ASTM E136 standards for superior fire safety.
  • Low VOC Certified: GREENGUARD and GREENGUARD Gold Certified for low emissions, making it suitable for environmentally conscious projects.
  • Versatile Applications: Provides a smooth surface for a variety of decorative treatments including paint, wall coverings, and textured coatings.
  • Enhanced Durability: Manufactured with smooth-finished edges to ensure easy installation and tight-fitting joints.
  • Simple Installation: Easy to handle, score, snap and install, for precise fitting due to the panel’s manageable design.

Product Specifications

PHYSICAL PROPERTIES

1/4″ (6.4 mm)
3/8" (9.5 mm)

PERFORMANCE ATTRIBUTES

R Valueft2•°F•hr/BTU (m2•K/W): 0.22 est. (0.04)2
Humidified DeflectionNot applicable3
ASTM TypeASTM C1396; ASTM C1629; ASTM C473; ASTM E136; ASTM E84
Flame Spread & Smoke Development15 & 0 (product dependent)
Mold Resistance (only include for Dens® and MMR products)No (10/10)
Water Absorption for Dens® and MMR products5%

PHYSICAL PROPERTIES

Lengthstandard: 8′ (2440 mm) to 12′ (3658 mm) ± 1/4″ (6.4 mm)
Widthnominal: 4′ (1220 mm), ± 3/32( (2.4 mm)
Thicknessnominal inches: 1/4″ (6.4 mm), ± 1/64( (0.4 mm)
Weightlbs./sq. ft., nominal (kg/m²): 1.2 (5.0)1
EdgeTapered and square edge

PERFORMANCE ATTRIBUTES

R Valueft2•°F•hr/BTU (m2•K/W): 0.33 (0.06)2
Humidified Deflection15/8″ (45 mm)3
ASTM TypeASTM C1396; ASTM C1629; ASTM C473; ASTM E136; ASTM E84
Flame Spread & Smoke Development15 & 0 (product dependent)
Mold Resistance (only include for Dens® and MMR products)No (10/10)
Water Absorption for Dens® and MMR products5%

PHYSICAL PROPERTIES

Lengthstandard: 8′ (2440 mm) to 12′ (3658 mm) ± 1/4″ (6.4 mm)
Widthnominal: 4′ (1220 mm), ± 3/32″ (2.4 mm)
Thicknessnominal inches: 3/8′ (9.5 mm), ± 1/64′ (0.4 mm)
Weightlbs./sq. ft., nominal (kg/m²): 1.4 (6.8)
EdgeTapered and square edge

CERTIFICATIONS

GreenGuard Gold

1 Represents approximate weight for design and shipping purposes. Actual weight may vary depending on manufacturing location and other factors.

2 Per Gypsum Association document GA-235.

3 Specified minimum values are as defined in ASTM C1396.

Consumer Product Safety Act (CPSA) – For CPSA General Certificate of Conformity, please click here.

Resources

HPD/EPD
Installation
Safety Data Sheets
Submittal
Tech Guides
Warranties
ToughRock® Gypsum Board - HPD
0 Selected Resources
0 Selected Resources
ToughRock ® Gypsum Board Wallworks Guide
0 Selected Resources
0 Selected Resources
ToughRock Paper Faced Gypsym Safety Data Sheet
0 Selected Resources
Paper Faced Gypsum Panels Safety Data Sheet - Spanish
0 Selected Resources
Paper Faced Gypsum Panels Safety Data Sheet - French
0 Selected Resources
Gypsum Paper Faced Panels English Canada
0 Selected Resources
0 Selected Resources
ToughRock® Gypsum Board Submittal
0 Selected Resources
0 Selected Resources
ToughRock® - Technical Guide
0 Selected Resources
ToughRock® – Technical Guide (Español)
0 Selected Resources
0 Selected Resources
ToughRock® Joint Systems Limited Warranty - Canada (English)
0 Selected Resources
ToughRock® Joint Systems Limited Warranty - USA (English)
0 Selected Resources
ToughRock® Limited Warranty - Canada (English)
0 Selected Resources
ToughRock®Limited Warranty - USA (Español)
0 Selected Resources
ToughRock®Limited Warranty - USA (English)
0 Selected Resources
ToughRock® Limited Warranty - Canada (Français)
0 Selected Resources
0 Selected Resources

FAQs

Should gypsum board be installed vertically or horizontally?

While gypsum boards are stronger in one direction, they may be installed either vertically or horizontally on both wood and steel studs. If the boards are to be used in a fire rated assembly, then use the board orientation that is stated in your specific rated assembly.
