DryPly® Plywood Sturd-I-Floor

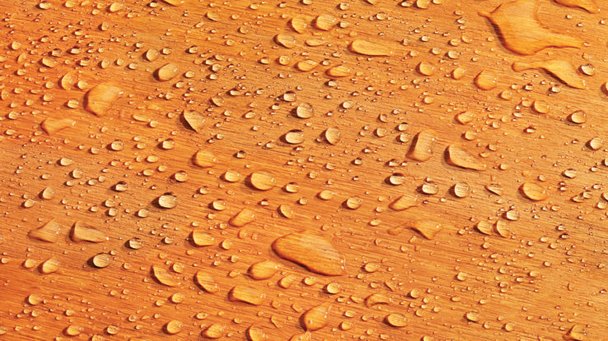

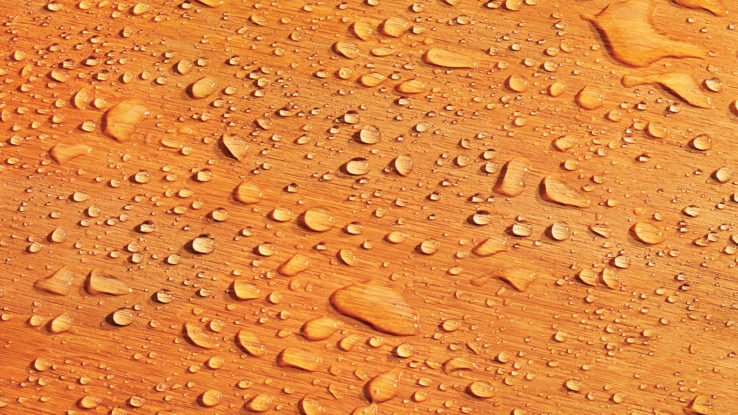

Water-repellent coating helps provide weather protection during the construction cycle
Helps reduce water absorption by up to 40% during the normal construction cycle compared to uncoated plywood
Backed by a lifetime limited warranty

Download Request a Sample

Product Details

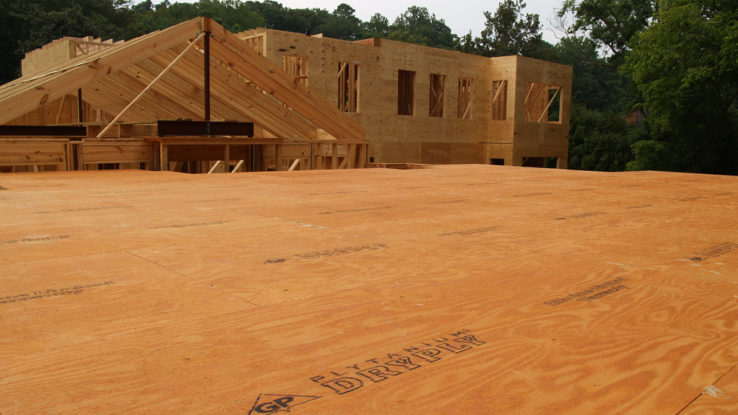

DryPly® Plywood Sturd-I-Floor® panels feature a water-repellent coating that provides excellent weather protection during construction. In fact, the coating on this tried and tested sub-floor helps reduce water absorption by up to 40%. There’s no better way to protect your sub-floor, reduce time-consuming sanding and minimize callbacks. Our lifetime limited warranty says it all.

Product Specifications

AVAILABLE SIZES (SIZED FOR 4’ X 8’)

Square Edge	3’-11 7⁄8” (1.216 m) x 7’-11 7⁄8” (2.435 m)
Tongue & Groove	3’-11 1⁄2” (1.206 m) x 7’-11 7⁄8” (2.435 m)

BUILDING CODE PERFORMANCE CATEGORIES, PANEL THICKNESS

23/32 CAT

0.703” (17.85 mm)

SPECIFICATIONS

Length/Width Tolerance	+0, -1⁄16” (+0, -1.6 mm)
Straightness Tolerance	±1⁄16” (±1.6 mm)
Squareness Tolerance	± 1/8” (± 3.2 mm)
Primary Species	Southern Yellow Pine
Water Repellent Coating	Wax emulsion based surface sealer
Testing Agency	APA® – The Engineered Wood Association
Classification	Exposure 1 : Plywood suitable for uses not permanently exposed to the weather. Panels classified as Exposure 1 are intended to resist the effects of moisture on structural performance as may occur due to construction delays, or other conditions of similar severity.
Code Fire Classification	Class III or C
Flame Spread Rating	76-200, smoke developed index <450
Building Code Compliance	PS 1-22
