ToughRock Fireguard 45 Fire-Rated Gypsum Board, Interior Wallboard
ToughRock Fireguard 45 Fire-Rated Gypsum Wallboard
ToughRock Fireguard 45 Fire-Rated Gypsum Board
DensGlass Shaftliner Reinforced Fire-Rated Fiberglass Wall Panels
toughrock interior wallboard panels

ToughRock® Fireguard 45 Gypsum Board

  • 45-minute UL Classified rating in select assemblies1
  • Lighter in weight compared to traditional 5/8″ Type X and 1/2″ Type C fire-rated wallboards
  • Lowers sound transmission compared to ½” standard and lightweight wallboard
  • Available in 48” and 54” width
  • Can replace ½” standard and lightweight gypsum board in wall and ceiling assemblies, including 24″ o.c. ceilings.²

1Consult UL Fire Resistance Directory for assembly information. 2Consult local codes for actual requirements

Differentiate your homes with fire-rated construction.

Help address concerns for fire safety by promoting increased fire resistance in your residential construction. ToughRock® Fireguard 45® Gypsum Board is manufactured to meet ASTM C1396 Sections 5 and 12. Its dimensionally stable gypsum core is noncombustible as described and tested in accordance with ASTM E136 and UL-classified Type FG for use in select fire-rated wall assemblies.1 In third-party testing, wall assemblies with 1/2″ ToughRock Fireguard 45 Gypsum Board lasted longer than assemblies with 1/2″ lightweight gypsum board.2

1Consult UL Fire Resistance Directory for assembly information. 2Source: 5 Source: WFCI Report#14083 *FIRE SAFETY CAUTION – Passing a fire test in a controlled laboratory setting and/or certifying or labeling a product as having a 45 minute or any other fire resistance or protection rating and, therefore, as acceptable for use in certain fire rated assemblies/systems, does not mean that either a particular assembly/system incorporating the product, or any given piece of the product itself, will necessarily provide 45 minute fire resistance or any other specified fire resistance or protection in an actual fire. In the event of an actual fire, you should immediately take any and all actions necessary for your safety and the safety of others without regard for any fire rating of any product or assembly/system. For additional information concerning fire ratings and fire safety, go to www.buildgp.com/safetyinfo.

Fire Resistance

Enhanced fire resistance – 45-minute UL Classified rating in select assemblies1

Special Application

Specially designed with improved sag resistance, for ceiling applications

SPECS

Physical Properties
Thickness

nominal inches: 1/2″ (12.7 mm), ± 1/64″ (0.4 mm)

Width

nominal: 4′ (1220 mm), – 3/32” (2.4 mm); 54″ (1372 mm), – 3/32” (2.4 mm)

Length

standard: 88′ (2440 mm) to 16′ (4880 mm) ± 1/4″ (6.4 mm)

Weight

lbs./sq. ft. nominal (kg/m2): 1.65 (8.1)1

R Value

°F•ft2•hr/BTU (m2•K/W): 0.45 (0.08)2

Humidified Deflection

5/16″ (8 mm)

Specific products may not be available in all markets. Contact your sales representative for product availability

1Represents approximate weight for design and shipping purposes. Actual weight may vary depending on manufacturing location and other factors. 2Per Gypsum Association document GA-235.

Certifications
GREENGUARD Gold Certification

Certifications may vary by production location, please contact local representative for more information.

PRODUCT RESOURCES

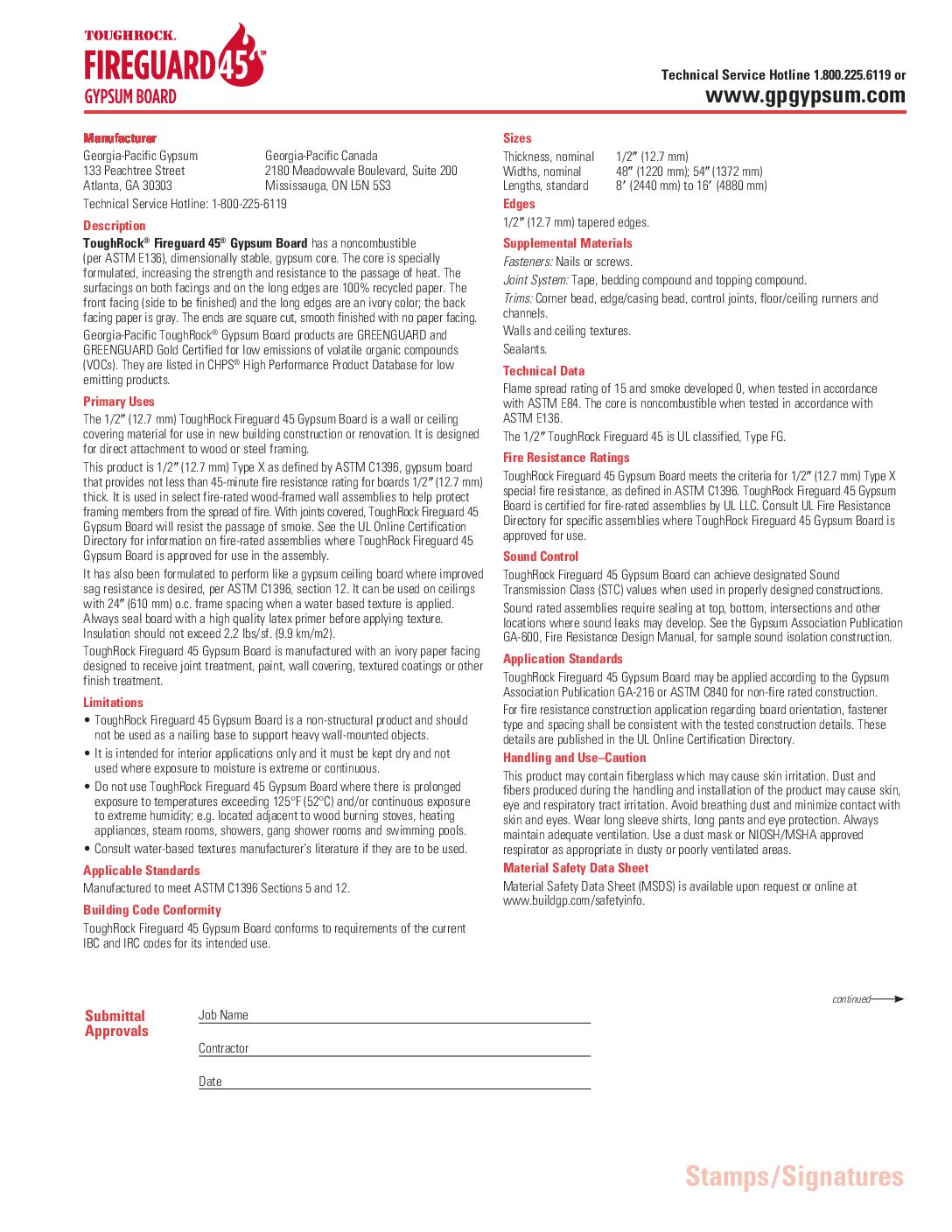

Submittals
Warranties
Tech Guides
Safety Data
Installation
Sustainability

Product FAQs

What is the STC for 1/2" (12.7 mm) ToughRock® Fireguard 45® Gypsum Boards in wall assemblies when compared to 1/2" (12.7 mm) light weight gypsum boards on the market today?
Answer

Since 1/2″ (12.7 mm) ToughRock Fireguard 45 Gypsum Board is a heavier product, the sound resistance of the wall or ceiling may be better if it is used in place of 1/2″ light weight gypsum boards. Many factors affect the sound resistance of your wall including the spacing of your studs, the type of studs, the use of insulation or resilient channel, the spacing of fasteners, etc. In independent lab testing, 1/2″ (12.7 mm) ToughRock Fireguard 45 Gypsum Board wall assemblies performed 1 – 4 STC better than comparable assemblies constructed using 1/2″ lightweight gypsum boards.

Where can 1/2" (12.7 mm) ToughRock® Fireguard 45® Gypsum Board be used?
Does 1/2" (12.7 mm) ToughRock® Fireguard 45® Gypsum Board provide improved fire resistance over 1/2" (12.7 mm) lightweight gypsum boards in applications other than those shown in specific UL designs?
What do you mean when you state this product is a Type X gypsum board?
Since 1/2" (12.7 mm) ToughRock® Fireguard 45® Gypsum Board is considered Type X, is it listed in any UL designs?
Can 1/2" (12.7 mm) ToughRock® Fireguard 45® Gypsum Board take the place of 5/8" Type X gypsum boards in a fire-rated assembly?
Can 1/2" (12.7 mm) ToughRock® Fireguard 45 Gypsum Board be used on ceilings?
What is the weight of this product?
Can 1/2" (12.7 mm) ToughRock® Fireguard 45® Gypsum Board be used in area separation walls?
