Special Application Sheathing Panels
toughrock gypsum fire rated drywall panels

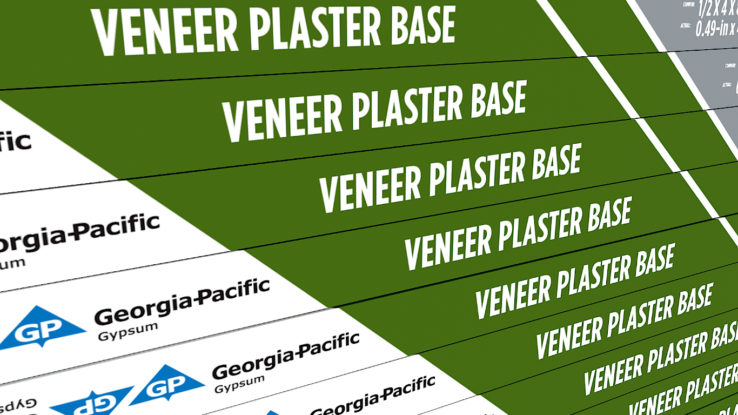

ToughRock® Veneer Plaster Base

  • Gypsum plaster base with a high-suction face paper
  • Available in ½” and 5/8”
  • 5/8” UL certified and ULC listed Type X for use in a variety of fire-rated wood and steel-framed assemblies1
  • Noncombustible gypsum core (per ASTM E136)
High suction paper-faced gypsum boards specially designed for veneer plasters.

ToughRock® Veneer Plaster Base board and ToughRock® FireGuard X® Veneer Plaster Base are designed to bond with skim coats of specially formulated veneer plasters. These plasters form a surface that is much harder than typical gypsum wall board, making it less prone to dents and scratches.1

1Consult UL Fire Resistance Directory for assembly information.

*FIRE SAFETY CAUTION – Passing a fire test in a controlled laboratory setting and/or certifying or labeling a product as having a one-hour, two-hour, or any other fire resistance or protection rating and, therefore, as acceptable for use in certain fire rated assemblies/systems, does not mean that either a particular assembly/system incorporating the product, or any given piece of the product itself, will necessarily provide one-hour fire resistance, two-hour fire resistance, or any other specified fire resistance or protection in an actual fire. In the event of an actual fire, you should immediately take any and all actions necessary for your safety and the safety of others without regard for any fire rating of any product or assembly/system. For additional information concerning fire ratings and fire safety, visit our Product Fire, Safety and Use Information page.

Special Application

Specially formulated face paper

Fire Resistant

Enhanced fire resistance in 5/8” board

Versatility

Available in multiple sizes – ½” and 5/8”

SPECS

Physical Properties - ToughRock® Veneer Plaster Base
Thickness

nominal inches: 1/2″ (12.7 mm) ± 1/64″ (0.4 mm)

Width

nominal: 4′ (1220 mm), – 3/32″ (2.4 mm)

Length

standard: 8′ (2440 mm) ± 12′ (3658 mm) ± 1/4″ (6.4 mm)

Weight

lbs./sq. ft., nominal (kg/m2): 1.7 (7.8)1

R Value

°F•ft2•hr/BTU (m2•K/W): 0.45 (0.08)2

Humidified Deflection

10/8″ (32 mm)

Physical Properties - ToughRock® FireGuard X® Veneer Plaster Base
Thickness

nominal inches: 5/8” (15.9 mm) ± 1/64” (0.4 mm)

Width

nominal: 4′ (1220 mm), – 3/32″ (2.4 mm)

Length

standard: 8′ (2440 mm) ± 12′ (3658 mm) ± 1/4″ (6.4 mm)

Weight

lbs./sq. ft., nominal (kg/m2): 2.1 (9.5)1

R Value

°F•ft2•hr/BTU (m2•K/W): 0.45 (0.08)2

Humidified Deflection

5/8” (16 mm)

1Represents approximate weight for design and shipping purposes. Actual weight may vary depending on manufacturing location and other factors. 2Per Gypsum Association document GA-235.

Warranty / Certifications

Product Resources

Submittals
Warranties
Tech Guides
Safety Data
Installation
Sustainability

Product FAQs

What happened to Georgia-Pacific's regular 1/2" gypsum board?
Answer

Georgia-Pacific has always made a quality 1/2″ paper-faced gypsum board. In the first half of 2015, Georgia-Pacific Gypsum introduced an upgraded 1/2″ paper-faced gypsum board called ToughRock® Fireguard 45™ Gypsum Board. The improved 1/2” board has enhanced fire-resistive properties and can replace standard and lightweight gypsum board in ALL 1/2″ wall and ceiling assemblies, including 24″ o.c. framed ceilings. ToughRock Fireguard 45 Gypsum Board is a standard weight 1/2″ interior wallboard that has achieved a 45-minute UL classified fire rating in select assemblies (consult local codes for actual requirements). For additional information concerning fire ratings and fire safety, go to www.buildgp.com/safetyinfo.

Research used to shape the innovation process considered consumer concerns about home fire safety. Learn more>>

Can I use gypsum board in ceilings at 24" o.c. support?
What should we do if the gypsum board gets wet?
Should gypsum board be installed vertically or horizontally?
How often is a control joint required?
