Showing 12 results
ToughRock FireGuard X Mold Guard Moisture-Resistant Gypsum Board Drywall Panels
Thickness

nominal inches: 5/8” (15.9 mm) ± 1/64” (0.4 mm)

Width

nominal: 4′ (1220 mm), 54″ (1372 mm)

Length

standard: 8 ft. (2440 mm) – 14′ (4270 mm)

Weight

lbs/sq. ft. nominal (kg/m²): 2.3 (11.2)1

R Value

°F•ft2•hr/BTU (m2•K/W): 0. .56 est. (0.10)2

Humidified Deflection

5/8″ (16 mm)3

1Represents approximate weight for design and shipping purposes. Actual weight may vary depending on manufacturing location and other factors. 2Per Gypsum Association document GA-235. 3Specified minimum values are as defined in ASTM C1396.

Fire Resistance
Moisture Resistance

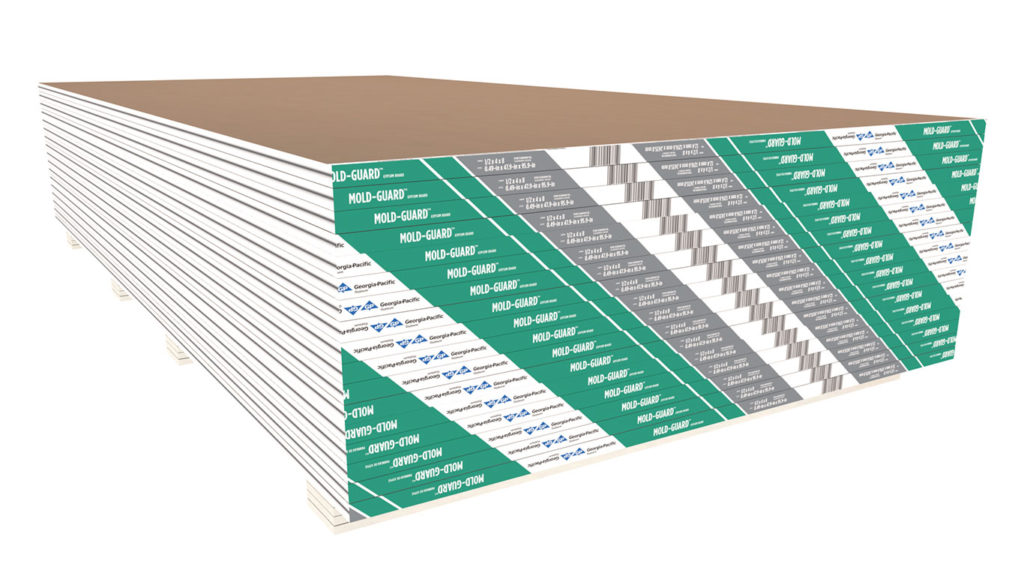

ToughRock Mold Guard Moisture Resistant Drywall
Thickness

nominal inches: 1/2″ (12.7 mm), ±1/64″ (0.4 mm)

Width

nominal: 4′ (1220 mm) ±3/32″ (2.4 mm)

Length

standard: 8’ (2440 mm) to 16’ (4880 mm) ± 1/4( (6.4 mm)

Weight

lbs/sq. ft. nominal (kg/m²): 1.7 (8.3)1

R Value

°F•ft2•hr/BTU (m2•K/W): 0. .45 (0.08)2

Humidified Deflection

10/8″ (32 mm)3

1Represents approximate weight for design and shipping purposes. Actual weight may vary depending on manufacturing location and other factors. 2Per Gypsum Association document GA-235. 3Specified minimum values are as defined in ASTM C1396.

Moisture Resistance

DensGlass Shaftliner Fire-Rated Reinforced Fiberglass Wall Panels
Thickness

1″ (25.4 mm) ± 1/32″ (0.8 mm)

Width

Nominal: 24″ (610 mm)

Length

standard: 8′ (2440 mm), 12′ (3658 mm) ± 1/4″ (6 mm)2

Weight

lbs/sq. ft. nominal (kg/m²): 4.0 (20)4

R Value

ft2•°F•hr/BTU (m2•K/W): > 0.65 (0.115)3

1Tested in accordance with ASTM C473 where applicable. 2Lengths normally stocked are 8’, 10’, and 12’. Special lengths up to 14’ may be available with lead times and minimum runs that vary by plant. 3Tested in accordance with ASTM C518. 4Represents approximate weight for design and shipping purposes.

Moisture Resistance
Fire Resistance
Special Applications

DensShield Tile Backer Board & Moisture Barrier Underlayment
Thickness

1/4″ (6.4mm)

Width x Length

4′ x 4′ (1220 mm x 1220 mm)

Thickness

1/2″ (12.7 mm)

Width x Length

32″ x 5′ (813 mm x 1524) 4′ x 5′ (1220 mm x 1524 mm) 4′ x 8′ (1220 mm x 2438 mm)

Thickness

5/8″ (15.9 mm)

Width x Length

4′ x 8′ (1220 mm x 2438 mm)

Moisture Resistance
Ease-of-Use
Versatility

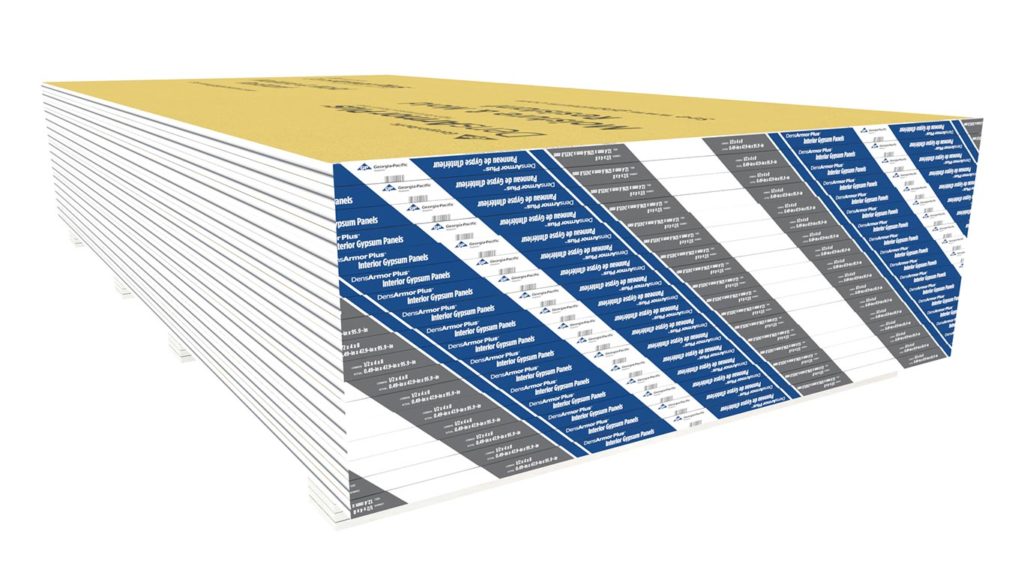

DensArmor Plus Moisture-Resistant Gypsum Interior Panels
Thickness

nominal: 1/2″ (12.7 mm) ± 1/64″ (0.4 mm)

Width

standard: 4′ (1219 mm) ± 3/32″ (2.4 mm)

Length

standard: 8′ (2438 mm) to 12′ (3658 mm) ± 1/4″ (6.4 mm)

Weight

lbs/sq. ft. nominal (kg/m²): 2.0 (9.8)1

R Value

°F•ft2•hr/BTU (m2•K/W): 0.56 est. (0.099)2

Humidified Deflection

≤2/8″ (6.4 mm)3

1Represents approximate weight for design and shipping purposes. Actual weight may vary depending on manufacturing location and other factors. 2Tested in accordance with ASTM C518 3Tested in accordance with ASTM C473

Moisture Resistance
Special Applications

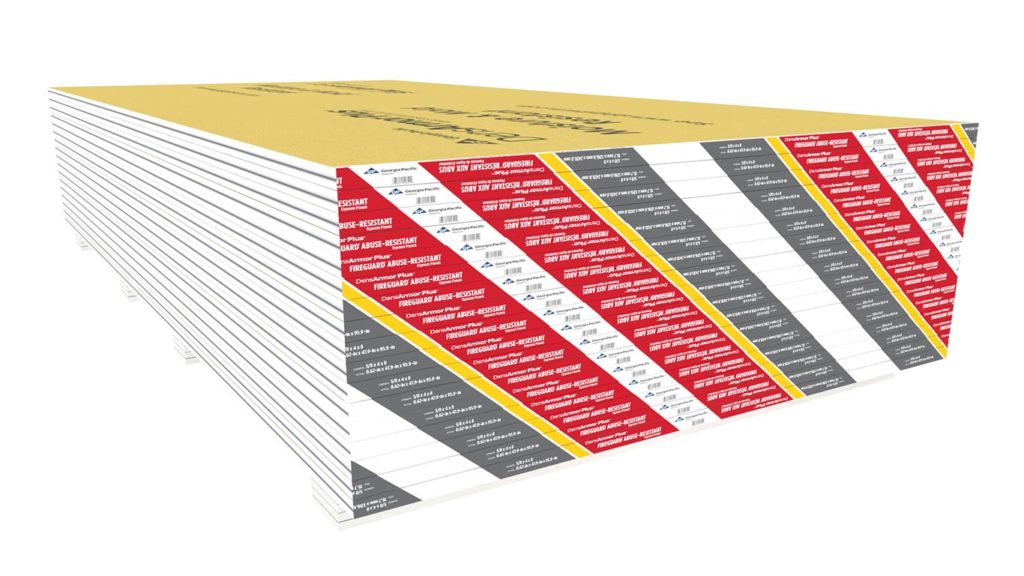

DensArmor Plus Fireguard Abuse-Resistant Drywall Interior Panels
Thickness

nominal: 5/8″ (15.9 mm) ± 1/64″ (0.4 mm)

Width

standard: 4′ (1219 mm) ± 3/32″ (2.4 mm)

Length

standard: 8′ (2438 mm) to 12′ (3658 mm) ± 1/4″ (6.4 mm)

Weight

lbs/sq. ft. nominal (kg/m²): 2.8 (13.7)1

R Value

°F•ft2•hr/BTU (m2•K/W): 0.67 (0.118)2

Humidified Deflection

≤1/8″ (3 mm)3

1Represents approximate weight for design and shipping purposes. Actual weight may vary depending on manufacturing location and other factors. 2Tested in accordance with ASTM C518 3Tested in accordance with ASTM C473

Abuse Resistance
Moisture Resistance
Special Applications

DensArmor Plus Fireguard Impact-Resistant Interior Panels
Thickness

nominal: 5/8″ (15.9 mm) ± 1/64″ (0.4 mm)

Width

nominal: 4′ (1219 mm) ± 3/32″ (2.4 mm)

Length

standard: 8′ (2438 mm), 10′ (3048 mm), 12′ (3658 mm) ± 1/4″ (6.4 mm)

Weight

lbs/sq. ft. nominal (kg/m²): 3.0 (14.6)1

R Value

°F•ft2•hr/BTU (m2•K/W): 0.67 (0.118)2

Humidified Deflection

≤1/8″ (3 mm)3

1Represents approximate weight for design and shipping purposes. Actual weight may vary depending on manufacturing location and other factors. 2Tested in accordance with ASTM C518 3Tested in accordance with ASTM C473

Impact Resistance
Moisture Resistance
Special Applications

DensGlass Gypsum Sheathing Panels
Thickness

½” (12.7 mm)

Width

Nominal: 4′ (1219 mm) ± 1/8″ (3 mm)

Length

standard: 8′ (2440 mm), 9′ (2743 mm), 10′ (3048 mm), ± 1/4″ (6 mm)

Weight

lbs/sq. ft. nominal (kg/m²): 1.9 (9)

Humidified Deflection

<2/8″ (6 mm)1, 3

R Value

°F•ft2•hr/BTU (m2•K/W): .56 (0.099)2

1Tested in accordance with ASTM C473 2Tested in accordance with ASTM C518 (heat flow meter) 3Specified values per ASTM C1177

Moisture Resistance
Fire Resistance
Ease-of-Use
Versatility


DensDeck Prime roofing side
Thickness

Nominal: 1/4″ (6.4 mm) ± 1/16″ (1.6 mm)

Width

Standard: 4′ (1219 mm) ± 1/8″ (3 mm)

Length

Standard: 4′ (1219 mm) AND 8′ (2438 mm) ± 1/4″ (6.4 mm)

Weight

lbs/sq. ft. nominal (kg/m²): 1.2 (5.9)1

Flexural Strength

Parallel, lbf. Min. (N) ≥40 (178)2

R Value

°F•ft2•hr/BTU (m2•K/W): .283

1Represents approximate weight for design and shipping purposes. Actual weight may vary based on manufacturing location and other factors. 2Tested in accordance with ASTM C473, method B. 3Tested in accordance with ASTM C518 (heat flow meter).

Fire Resistance
HAIL RESISTANCE
WIND RESISTANCE
SPECIAL APPLICATIONS
